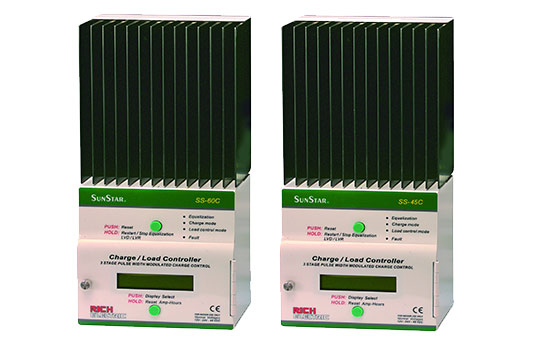

SunStar-12V/24V/48V-30A/45A/60A Stackable Solar Charger



Features

Solid-state Pulse Width Modulated (PWM) charging process with four-stage control,temperature compensation, and manual or automatic equalization to maximize system performance and increase battery life

Three operating modes programmed: solar battery charging, DC diversion charge control or DC load control

Electric overload and short circuit protection with automatic and manual reset capability increase the reliability of unattended systems by eliminating blown fuses and tripped circuit breakers

LCD meter with easy to read mode/status messages built in for SS-45C and SS-60C

An 8-position DIP switch to set up the controller for its intended use. All major functions can be set with DIP switches

Rated for 12, 24, 48 volt systems and 30, 45 or 60 amps current

Eight standard charging or Load programs selected with DIP switches

LED indications and pushbutton functions. Parallel connection for SS-45C and SS-60C (Max. 10 sets)

Optional remote panel with LCD display for easy operation in distance

Connection of SS-45C and SS-60C to CombiPlus/SuperCombi units to support “Green Power Smart Feature



Product Model No

SS-30C / SS-45C / SS-60C



Options

SS Remote controller with 3-meter cable

SS Remote controller with 15-meter cable

1-meter cable for parallel connection
3-meter cable for parallel connection
5-meter cable for parallel connection

10-meter cable for parallel connection

Battery Temperature Sensor with 3-meter cable

Battery Temperature Sensor with 6-meter cable

1-meter communication cable with CombiPlus

3-meter communication cable with CombiPlus
5-meter communication cable with CombiPlus

10-meter communication cable with CombiPlus
